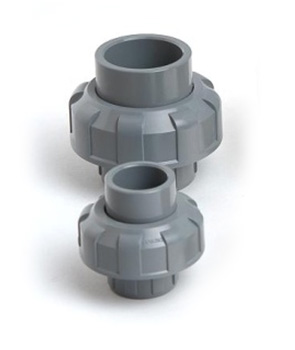

由令
优点：
描述：
1) 尺寸: 1/2'' ~ 4''; 20mm ~ 110mm ; DN15 ~ DN100
2) 标准: ANSI, DIN, JIS, CNS
3) 连接：插口，螺纹(NPT,PT,BSPF),熔接
4) 材质和颜色 : PVC(深灰色/白色), CPVC(浅灰色), PP & HT-CPVC(米黄色)
5) 操作温度: PVC(0~55℃); CPVC, HT-CPVC & PP(0~95℃)
描述：
1) 尺寸: 1/2'' ~ 4''; 20mm ~ 110mm ; DN15 ~ DN100
2) 标准: ANSI, DIN, JIS, CNS
3) 连接：插口，螺纹(NPT,PT,BSPF),熔接
4) 材质和颜色 : PVC(深灰色/白色), CPVC(浅灰色), PP & HT-CPVC(米黄色)
5) 操作温度: PVC(0~55℃); CPVC, HT-CPVC & PP(0~95℃)

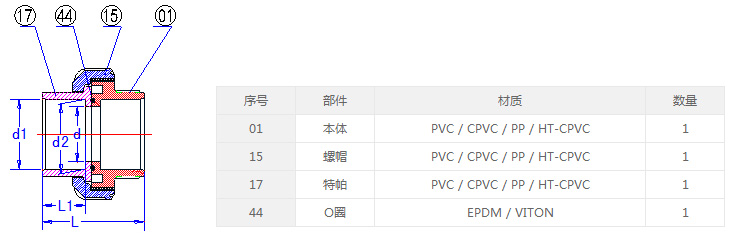

产品规格（单位: MM）
| 尺寸 | d | d1 | d2 | D | L | L1 | ||||||||
| ANSI | DIN | JIS | CNS | ANSI | DIN | JIS | CNS | ANSI/JIS/CNS | DIN | ANSI/JIS/CNS | DIN | |||
| 1/2'(15) | 15 | 21.54 | 20.30 | 22.40 | 22.40 | 21.23 | 20.10 | 21.73 | 21.90 | 54.00 | 53.50 | 41.00 | 22.30 | 16.00 |
| 3/4'(20) | 20 | 26.87 | 25.30 | 26.45 | 26.40 | 26.57 | 25.10 | 25.69 | 25.90 | 63.00 | 60.00 | 47.50 | 25.50 | 19.00 |
| 1'(25) | 25 | 33.65 | 32.30 | 32.55 | 34.50 | 33.27 | 32.10 | 31.70 | 33.90 | 73.50 | 67.00 | 53.50 | 28.60 | 22.00 |
| 1¼'(32) | 32 | 42.42 | 40.30 | 38.60 | 42.50 | 42.04 | 40.10 | 37.65 | 41.90 | 84.50 | 76.00 | 63.00 | 32.00 | 26.00 |
| 1½'(40) | 40 | 48.56 | 50.30 | 48.70 | 48.60 | 48.11 | 50.10 | 47.74 | 47.90 | 98.00 | 83.00 | 78.00 | 35.00 | 32.00 |
| 2'(50) | 50 | 60.63 | 63.30 | 60.80 | 60.60 | 60.17 | 63.10 | 59.78 | 59.90 | 119.00 | 90.00 | 38.00 | ||
| 2½'(65) | 63 | 73.38 | 75.30 | 76.60 | 76.70 | 72.85 | 75.10 | 75.68 | 75.90 | 150.00 | 110.00 | 47.00 | ||
| 3'(80) | 75 | 89.31 | 90.40 | 89.60 | 89.70 | 88.70 | 90.10 | 88.55 | 88.90 | 169.00 | 127.00 | 51.00 | ||
| 4'(100) | 97 | 114.76 | 110.40 | 114.70 | 115.00 | 114.10 | 110.10 | 113.60 | 113.80 | 211.00 | 158.00 | 61.00 | ||
