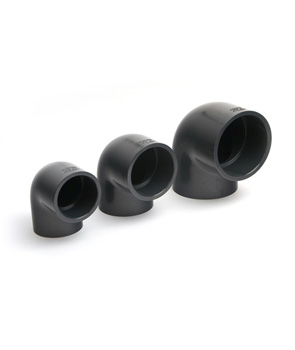

90 度弯头 (SxS)
优点:


描述:
产品规格(单位: MM)


公称尺寸 外径 承插口类型 承插口尺寸
D(MM) d1 d2 I d G
1/2' 30.00 21.54 21.23 24.00 16.00 13.00
3/4' 35.00 26.87 26.57 27.00 22.00 15.00
1' 44.00 33.65 33.27 29.00 30.00 18.00
1¼' 54.00 42.42 42.04 34.00 38.00 23.00
1½' 60.00 48.56 48.11 36.00 44.00 26.00
2' 73.00 60.63 60.17 39.00 54.00 32.00
2½' 88.00 73.38 72.85 46.50 67.00 39.00
3' 105.00 89.31 88.70 50.00 82.00 47.00
4' 132.00 114.76 114.10 60.00 106.00 59.00
5' 162.00 141.81 141.00 77.00 133.00 76.50
6' 191.00 168.83 168.00 79.00 158.00 89.00
8' 246.00 219.84 218.70 102.00 200.00 115.00
10' 304.80 273.81 272.67 128.00 265.00 145.00
12' 363.50 324.61 323.47 164.00 313.50 175.00
